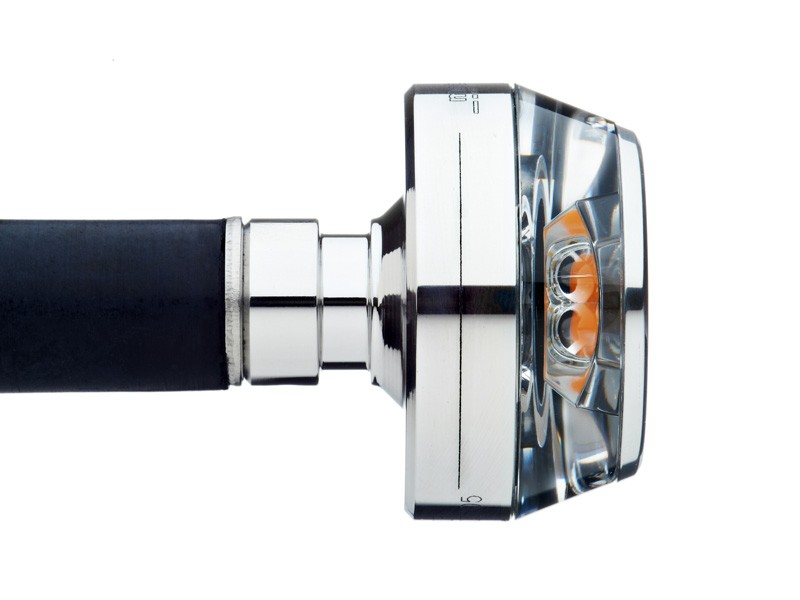

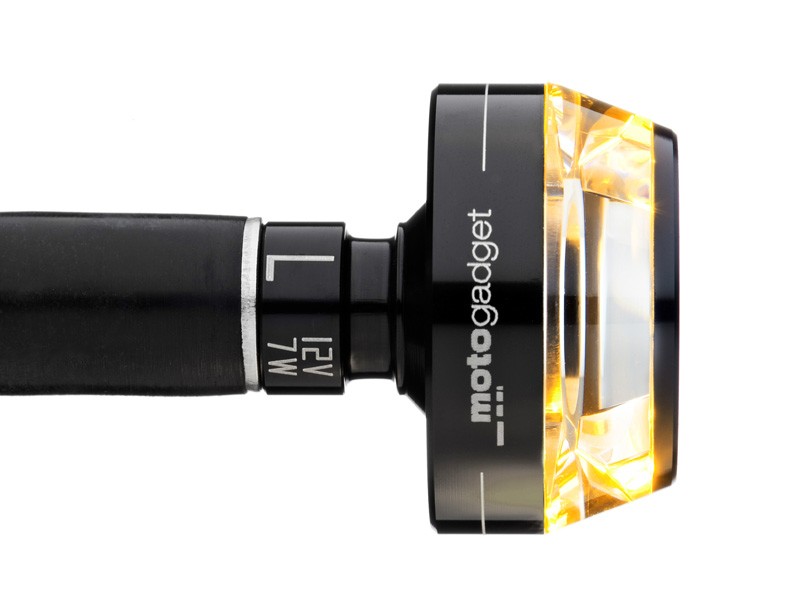

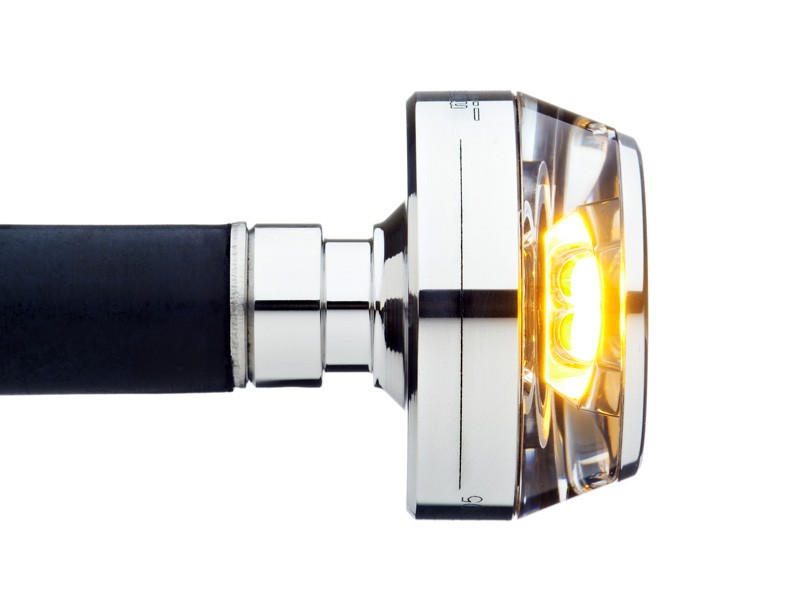

Capable of functioning as both front and rear turn signals at the same time, the Motogadget m-Blaze Disc is an exceptionally sleek bar-end LED turn signal. As with all Motogadget products, the construction and finish of these LED signals is immaculate and the light emitted from these signals has to be seen to be believed. Available in black and polished finishes, the m-Blaze Disc adds a terrific touch of style to your custom project or simply tidies up the unsightly stock indicators on your machine. Easy to install and compatible with 7/8″ and 1″ bars, you can’t go wrong with these turn signals.
Regarding the left and right options for the m-Blaze Disc turn signals, this simply determines the orientation that the small Motogadget text is facing on the outer rim of the signals. The m-Blaze Discs are sold individually, so purchase two for a complete set.
For installation instructions, we encourage you to read the manual provided by Motogadget, which can be found here.
For more information about the m-Blaze Disc turn signals, here is Motogadget’s description of the component:
The m-Blaze Disc is the latest generation of turn signal lights.

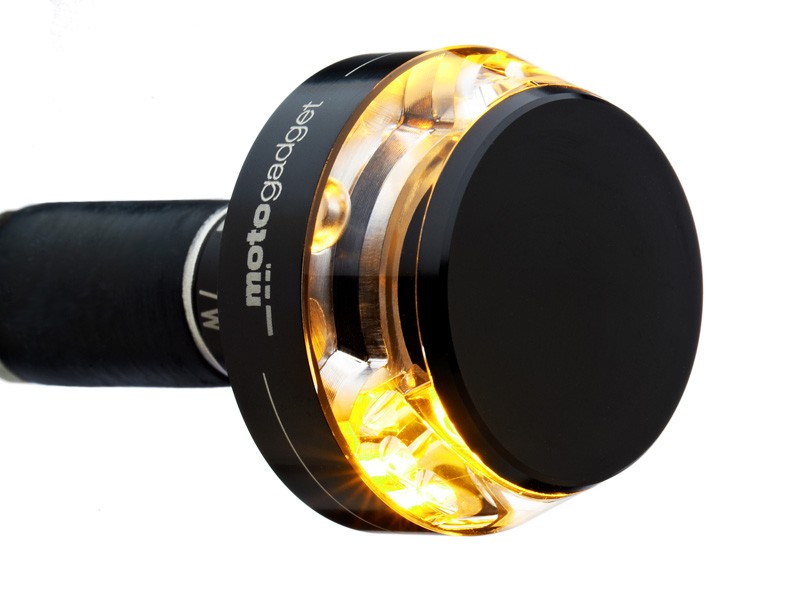

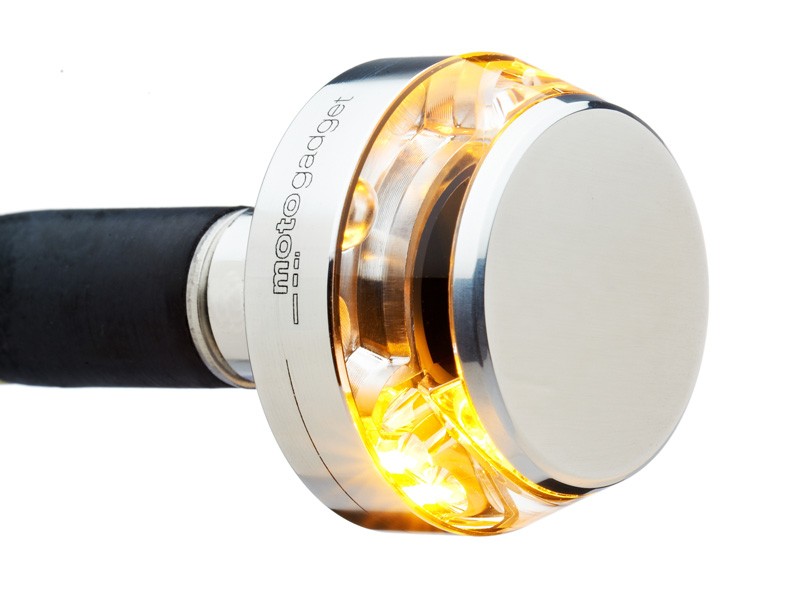

The characteristic feature of the LED turn signal is the transparent light-emitting disc on a compact aluminium base providing the harmonious finish of the handlebar end.
This is already the third generation of our turn signals using the motogadget TranzLight-Technology® (TLT, patent pending). This progressive approach to development is not limited to the miniaturization of turn signal casings. Furthermore, it creates new lighting concepts directly through a crystal-like plastic body. Only the precision of CAD calculations and state-of-the-art manufacturing processes allow this new design and its performance opportunities.
The luminous flux required for the TranzLight technology is generated by the intensiLED® procedure developed by motogadget. It consists of three important pillars:
– specifically selected, high output LED with maximum efficiency and 7W total output and a service life of more than 50,000 hours
– IC controlled constant power source with 330 kHz pulses
– special collimator optics, that precisely bundles the emission light from the LED into the plastic body
The subtle aluminium casing is used for the secure mount of the plastic body only and includes the electronic control system and high-end LEDs.
Traditionally, the casing is machined using CNC technology, available with an anodized black or mirror polish surface and furnished with an elegant finish of laser inscriptions.

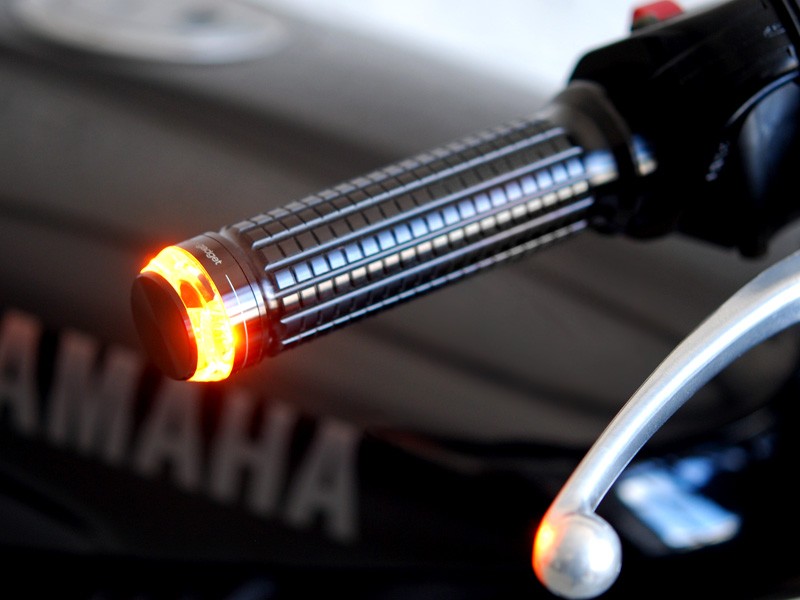

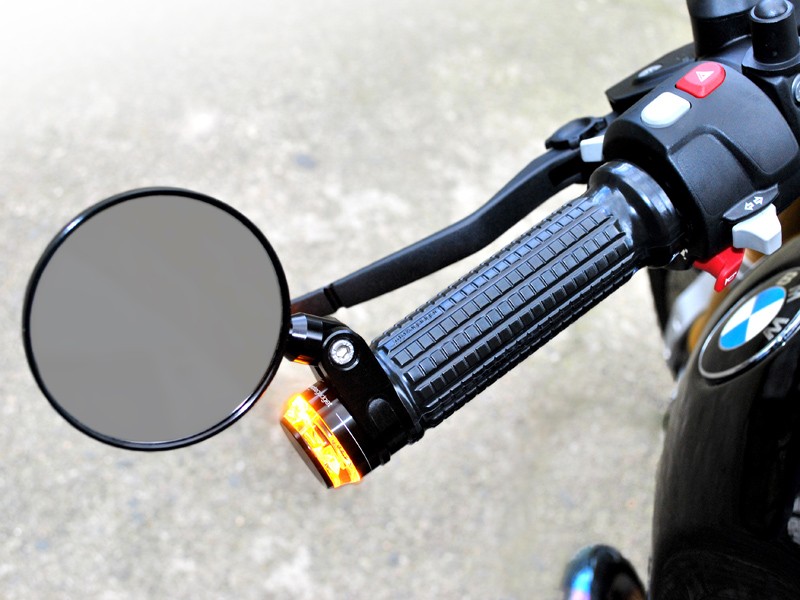

The turn signal for handlebar end installation has a very low construction height and, due to the transparent disc, the m-Blaze shows up with a very neutral and subtle look. That’s why the m-Blaze is the perfect match to many styles and all types of motorbikes.
The m-Blaze Disc has E mark and front turn signal approval.
Parts delivered: Single turn signal “m-Blaze Disc”, left or right side; for handlebar end installation; incl. clamping for steel and aluminium handlebars (22 mm and 1 in.) with 14 mm to 21 mm I.D.; connector cable length approx. 100 cm.
Always make sure to order a complete set consisting of the left and right side turn signal assembly!
Benefits
– completely unique, discrete design and functionality
– barely recognizable on handlebar when OFF
– extremely bright light to front side, well recognizable light output to rear side
– state-of-the-art, high performance LED technology called IntensiLED
– electronic voltage conditioning and secure protection circuits
– no need for turn signal indicator lights
– quite harmonious finish for handlebar end – especially when equipped with m-Grip or other billet grips.
Dimensions
Diameter: 35 mm
Overall length: 68 mm
Partial length outside handlebar: 20 mm
Partial length inside handlebar: 48 mm
Cable length: ca. 100 cm
Weight: approx. 40 g
Mounting: Delivered with rubber clamping parts for steel and aluminium handlebars (22 mm and 1 in.) with 14 mm to 21 mm I.D.
Power consumption: approx. 7 Watt
Like any other conventional LED turn signal, the turn signal kit can be operated with load resistors or any of our load independent flasher relays (m-Flash, m-Wave, m-Stop, m-Relais+).
